4815
Power guillotine with manual spindle clamping system and 475 mm cutting length.
| Order number :48163111 |
| Cutting height : 80 mm |
| Table depth : 458 mm |
| Narrow cut : 30 mm |
| Cutting length : 475 mm |
Guillotine EBA 4815

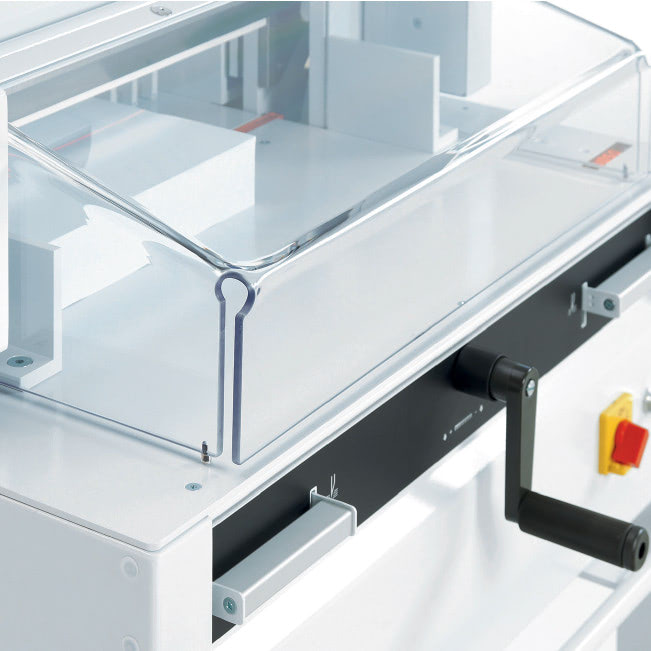

Transparent safety guard.
The hinged safety guard has to be closed to unlock the blade lever for the cutting process.
Hand crank.
The calibrated hand crank and the measuring tape on the side lay ensure the exact positioning of the backgauge.
EASY-CUT
Patented EASY-CUT activating bars: A cut can be executed conveniently by means of the patented EASY-CUT blade activating bars, which guarantee a safe two-hand operation.
Optical cutting line.
The optical cutting line indicator with especially bright and durable LEDs guarantees easy alignment of cutting marks for precise cuts.
Safe blade change.
Safe and convenient blade change without removing covers. Blade changing device covers cutting edge of blade to protect the operator.
Practical tool holder.
The practical hook-in tool holder is placed on the back table and keeps all necessary tools for blade change and service jobs within reach.
Specifications
| Cutting length | 475 mm |
| Cutting height | 80 mm |
| Narrow cut | mm |
| Table depth | 458 mm |
| Dimensions (H x W x D) |
1410 x 762 x 1053 mm |
| Weight |
212 kg without side tables 221 kg with side tables |
| Power |
230 V / 50 Hz / 1~ |
| Capacity |
1.1 kW |
